Authenticity Verification

Authenticity Verification consists of three technologies: deepfake detection, replay attack detection and audio manipulation. These technologies aim to identify if a recording has been deepfaked or otherwise manipulated.

This page explains how to use Phonexia Authenticity Verification in our web application. If you want to dive deeper into the inner workings of this technology, check out our detailed technical documentation.

Uploading files

If you use Authenticity Verification in the virtual appliance, you can upload your own files or create recordings with the built-in tool. If you don't have your own files, you can use the provided Phonexia example recordings to explore how the technology works.

In the demo version, only example recordings are available, as uploading files and recording are disabled.

info

If you use Phonexia examples, they will be processed by all three technologies by default: deepfake, replay attack, and audio manipulation detection.

Results

After uploading your recordings, they will appear in the left panel. Once processing is complete, the complete results for each technology will be displayed in the right panel.

If a deepfake is detected, a red warning icon with a score is displayed next to a “likely deepfake” warning. The user can view more details by clicking “details”, which reveals a colorful scale. The scale ranges from -2 to 6 — with positive (red) values indicating a deepfake and negative (green) values suggesting an authentic voice.

Similarly, if a replay attack is detected, a warning icon appears alongside the message “likely replayed.” Viewing the details shows a scale ranging from -3.5 to 0.5. Again, positive (red) values suggest the recording may be a replay from another source, while negative (green) values indicate authenticity.

info

The displayed ranges are restricted in the graphical interface to cover the most likely results for recordings. Therefore, some results may occasionally fall outside this range in the exported file.

Finally, if audio manipulation is identified, the number of suspicious events is displayed. By clicking “details”, the user can view all suspicious events directly on a waveform, alongside their timestamps and scores. The higher the score, the more significant or relevant the event. A play icon lets the user replay each segment individually.

Export formats

Once your results are ready, you can export them in a range of formats.

CSV and XLSX

If you choose CSV or XLSX and more than one technology was used to process the recording, multiple files will be exported — one for each technology. Each export file is automatically named after the corresponding audio file and the technology used to produce the result.

Deepfake detection and replay attack detection results files both include the channel number and the score.

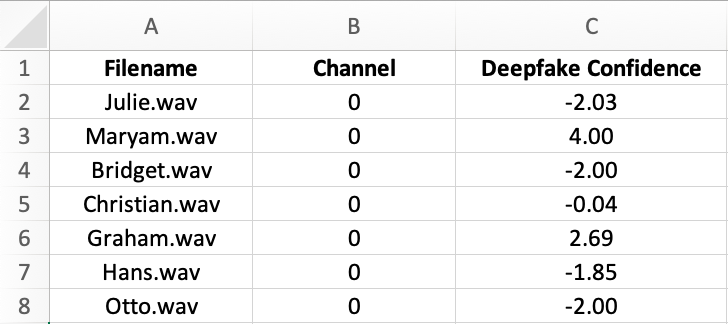

Table showing channel information and the respective deepfake scores.

Audio manipulation detection files provide additional details for each suspicious event — including the channel, start time, end time, and respective score.

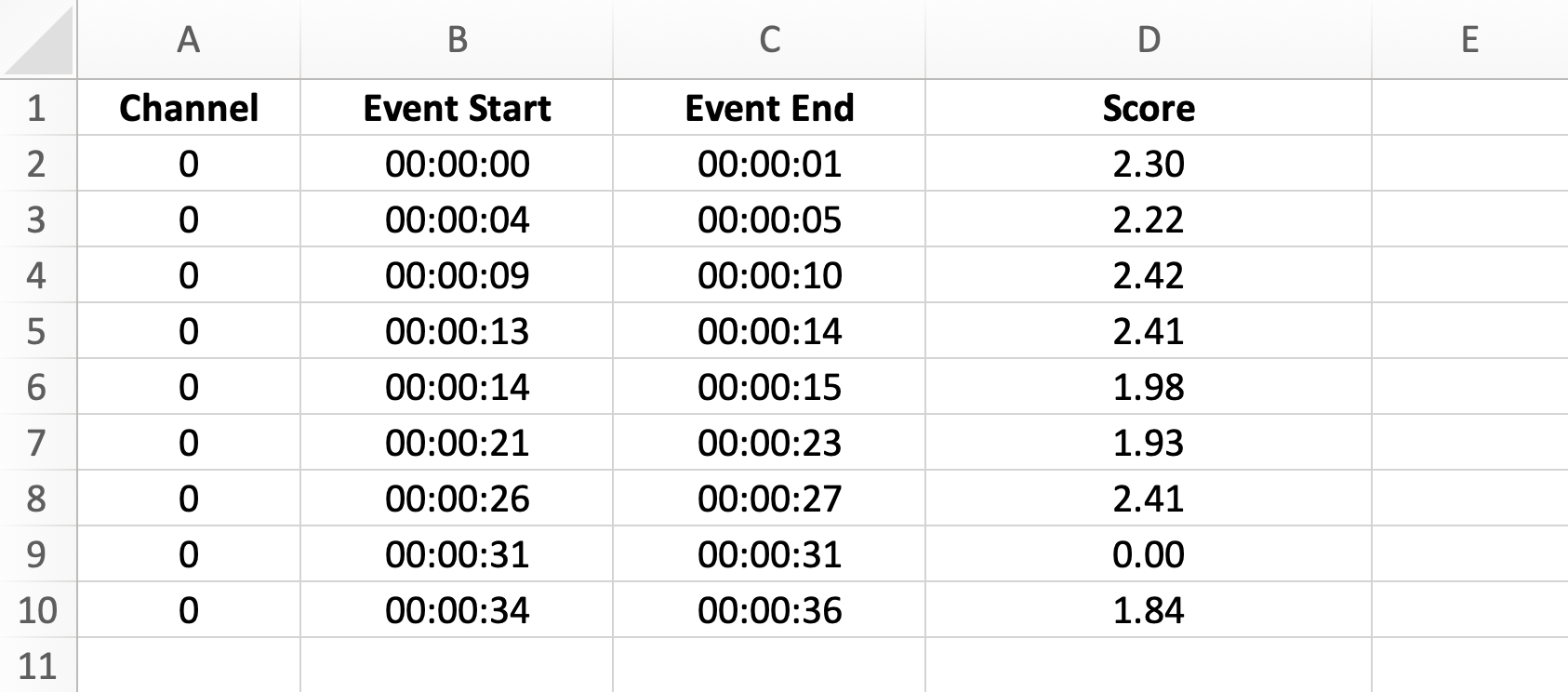

Table showing channel information, timestamps of suspicious events and their respective scores.

JSON

On the other hand, the JSON format consolidates the results from all used technologies.

{
"deepfake_detection": {
"channels": [
{
"channel_number": 0,
"score": -1.940624713897705
}
]
},
"audio_manipulation_detection": {
"channels": [
{
"channel_number": 0,
"segments": [
{
"score": 2.41091251373291,
"start_time": 23.864999999,
"end_time": 24.832499999
},
{
"score": 2.1013214588165283,
"start_time": 25.8,
"end_time": 26.445
},
{
"score": 1.8215841054916382,
"start_time": 27.734999999,
"end_time": 28.379999999
}
]
}
]
},
"replay_attack_detection": {
"channels": [
{
"channel_number": 0,
"score": -3.7237942218780518
}
]
}
}

The same results can also be exported in bulk as a ZIP file.

All results

Additionally, users have the option to export a summary file that displays the scores for all the selected recordings. Whether in CSV or XLSX format, the export file displays the deepfake score, replay attack score, and the total number of audio manipulation events detected in the selected recordings.

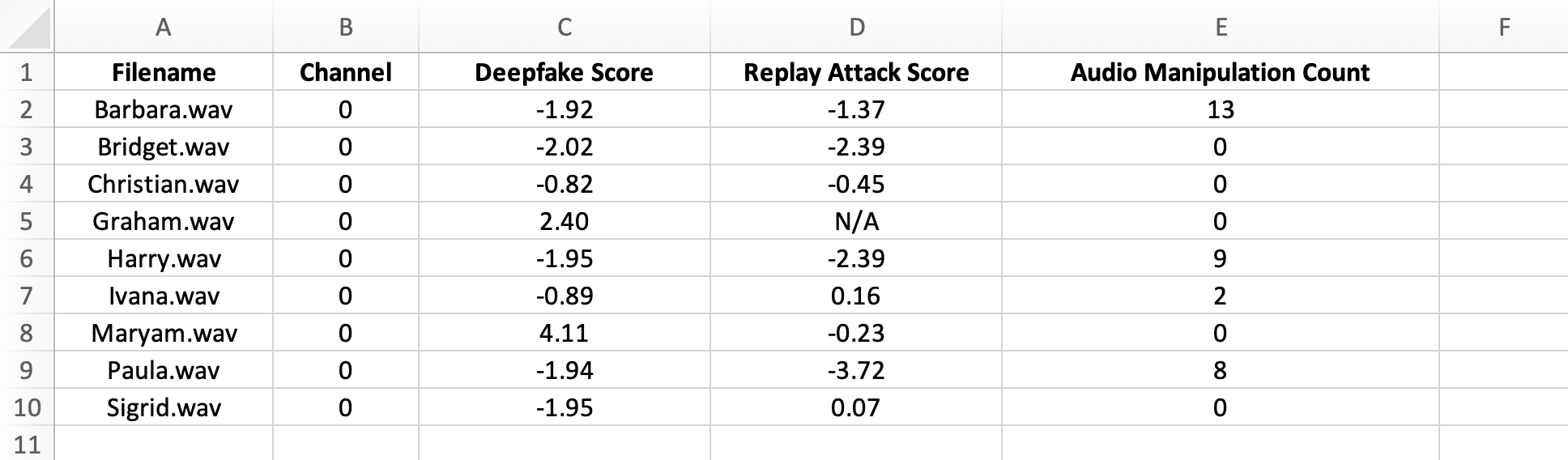

Table showing filename, channel, and the respective deepfake and replay attack scores and number of suspicious events.
